App for Leak Detection and Quantification
Advantages at a Glance
- Specific app for leak detection and quantification
- Automatic leak evaluation in l/min or cfm
- Process-accompanying documentation
- Add photos, voice memos and comments
- Add locations, define priorities and save details on repairs
- Create PDF report

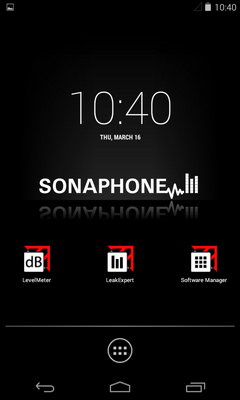

Specific app for leak detection and quantification
With the SONAPHONE ultrasonic testing device, the innovative airborne sound sensor and the LeakExpert software, not only can leaks in compressed air, gas and vacuum systems be located, but simultaneously evaluated as well. Based on methods of aeroacoustics, SONOTEC has developed the world’s first process for the classification and evaluation of leaks. The leak is displayed in liters per minute at the touch of a button. You can then use this information to set priorities for repair. The software, which has been specially developed for leak location, also has integrated test routines that guide you through the measurements.
The integrated documentation functions allow for state-of-the-art maintenance management. All maintenance-relevant information about a leak is stored directly in the SONAPHONE database. Paper records, which are error-prone and above all laborious, are therefore a thing of the past. Your measured data can be exported in just a few steps in order to be maintained in your existing system. You can also create a PDF report in no time at all. This allows you to contribute to your company’s success thanks to cost savings and increased energy efficiency.
Get exclusive access to software updates and new software products for your SONAPHONE.
1. Leak detection and quantification
Leaks in compressed air, gas and vacuum systems lead to air flows that can be located using ultrasound. These signals are processed using the testing device and the airborne sound sensor, and leaks are made audible. With various attachments for small and large distances and the graphic display of spectrogram and level curve, you are optimally equipped for leak detection and evaluation.
- Broadband analysis of the ultrasound signal in a frequency range from 20 to 100 kHz

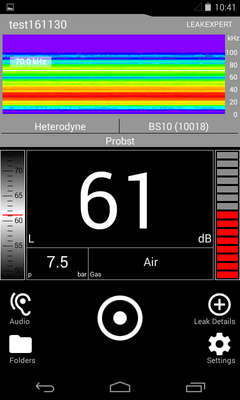

- Graphic display of spectrogram and level curve on the display
- Individually adjustable process for making signals audible (phase vocoder/heterodyne)

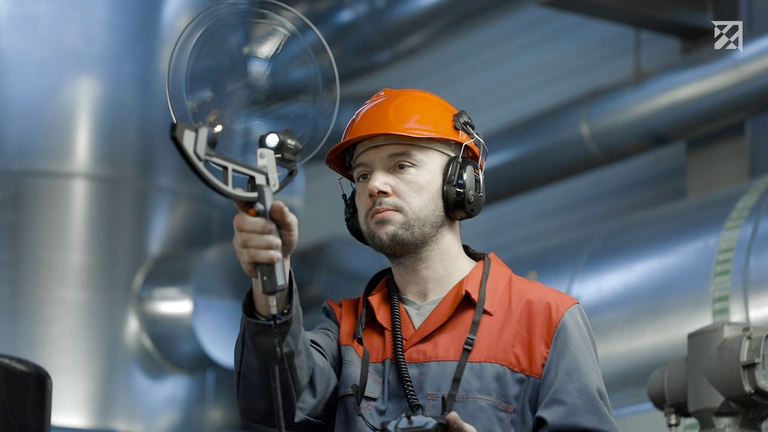

- Use of high-quality noise-protection headphones (noise-canceling)

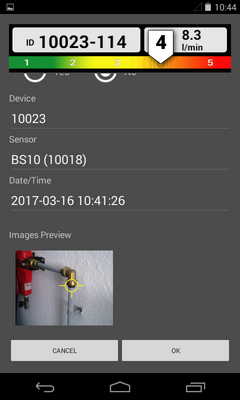

- Evaluation of the leak at the touch of a button, and immediate display of the loss in liters per minute. Automatic classification of the leak size in order to estimate the savings potential
2. Documenting the leaks
The LeakExpert software guarantees simple and structured testing and documentation. Test paths can be defined by entering the building, area, system and component, and help to locate leaks quickly during repair work. You can also add additional information in the form of text comments and voice memos, and take photos with the integrated camera.
- Simple organization and management of the leaks thanks to the clear structure in the device
- Individual prioritization of the individual leaks
- Storage of detailed information on the repair and option to add voice memos

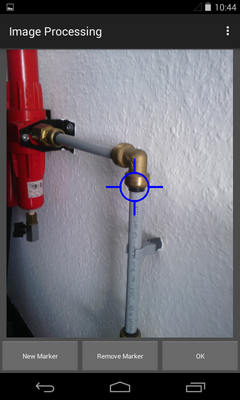

- Quick recording of photos with the integrated camera and marking of potential weak points with markers
3. Evaluating the measured data
Save time not only when recording but also when evaluating your measured data. With just a few clicks, you can create a professional evaluation for management or your customers at the end of your testing procedure. The different export functions make it easy for your to integrate the measured data into existing maintenance software. A PDF report can also be created of your work, summarizing all of the data in a structured manner and showing it in the form of diagrams.
- Simple transmission of the test data to your maintenance software by exporting a CSV file (text file of the data for further processing)

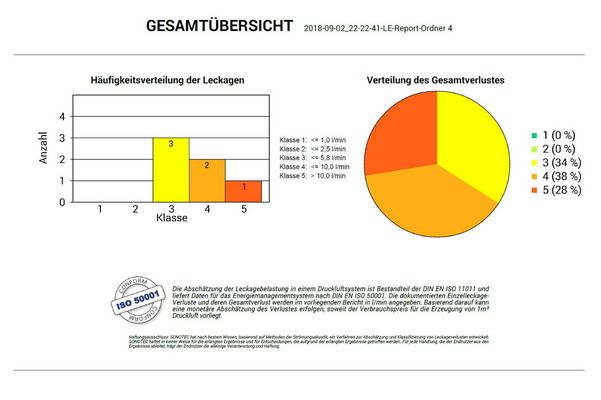

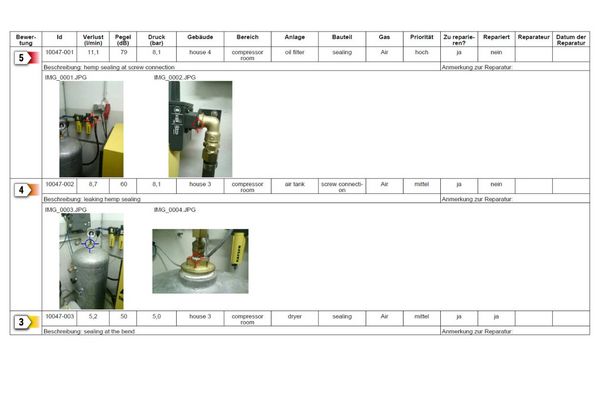

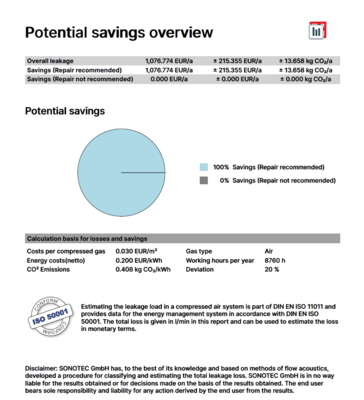

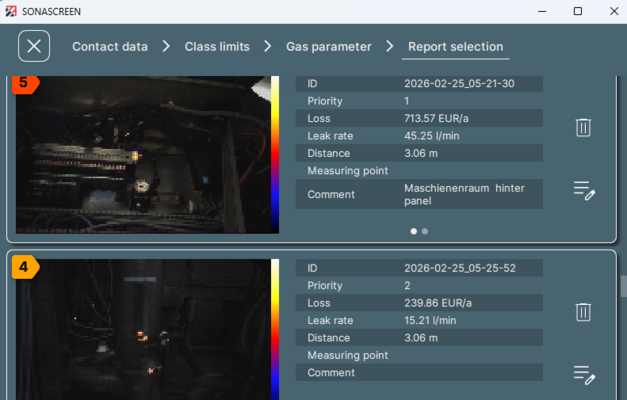

- Clear summary of the testing procedure in a PDF report: Processing the measured data in diagrams with information relating to the total loss. Clear listing of all saved leaks including text comments, photos and repair information
- Option to create a ZIP file to backup all test data (including sound files and photos)
Leak Detection and Quantification
