SteamExpert Module
for SONAPHONE DataSuite
The SteamExpert module is an additional module for the SONAPHONE DataSuite D and SONAPHONE DataSuite S. To activate the additional module, all you have to do is enter the license key to get full access to all functions.
Optimize the status assessment of your steam traps with the SteamExpert app and the SteamExpert module of the SONAPHONE DataSuite.
Advantages at a glance
-
Integrated, adaptable database of all common steam traps
-
Tool for steam loss and energy cost calculation
-
Condition assessment via threshold values and manual assessment possible
-
Perfect interaction with SteamExpert app speed up testing
Defective steam traps have a significant impact on the energy efficiency of a steam system and, in the worst case and, in the worst case, can cause dangerous water hammer and unplanned downtime. In addition, there are further challenges in the performance of the steam trap tests.
Complexity
- Operator needs in-depth knowledge of steam trap testing for efficient testing
- Large number of different types of traps with different pressures and temperatures, thus increased time expenditure as well as increased susceptibility to errors
- Time-consuming data collection and documentation of measurement data, images and texts
Costs
- Reduce costs through process optimization of steam trap testing tasks
Process stability
- Save time by optimizing of the testing process
- Ensure process stability
Security
- Operational safety
- Avoidance of accidents
Knowledge
- Qualification of the personnel deployed
- Reduce susceptibility to errors
Product Quality
- Quality assurance through reducing the susceptibility to errors
Environment
- Reduce CO2 emission
Add-on module for steam trap testing
The SteamExpert module is an additional module for the SONAPHONE DataSuite D and SONAPHONE DataSuite S. To activate the additional module, all you have to do is enter the license key to get full access to all functions.
Optimize the status assessment of your steam traps with the SteamExpert app and the SteamExpert module of the SONAPHONE DataSuite.

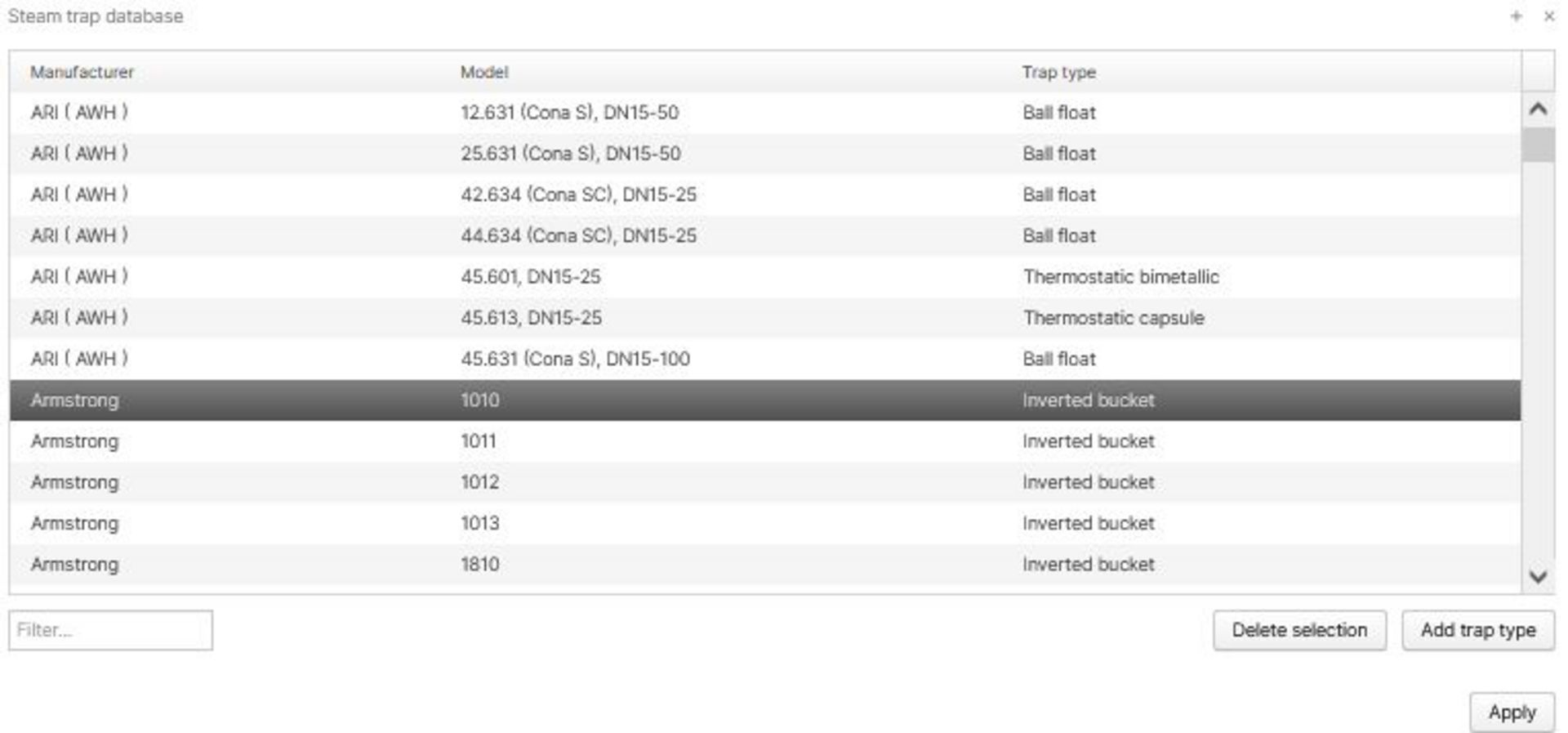

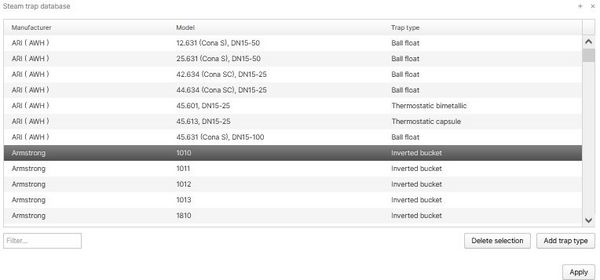

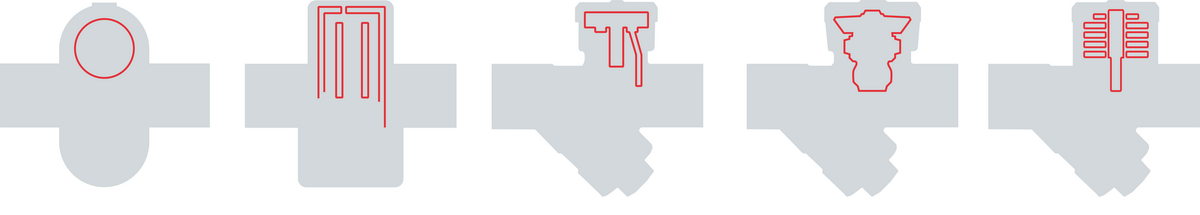

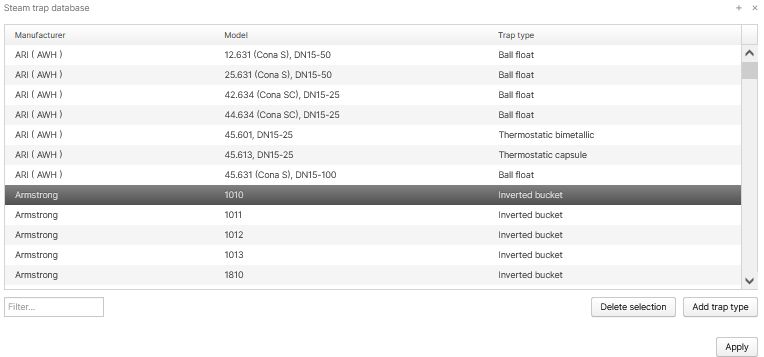

Steam trap database
Select your steam trap type in the integrated database, add new ones or adjust the settings.

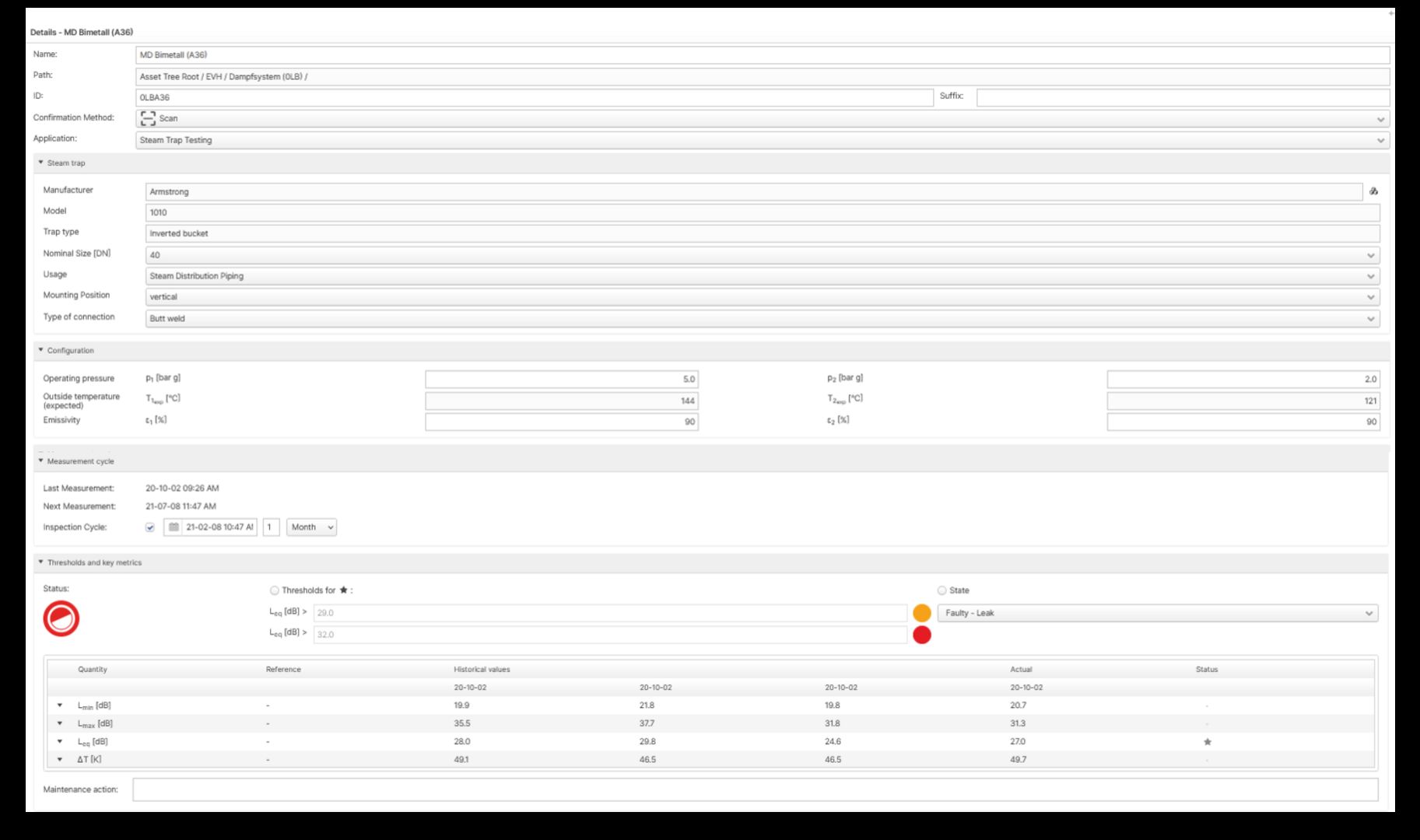

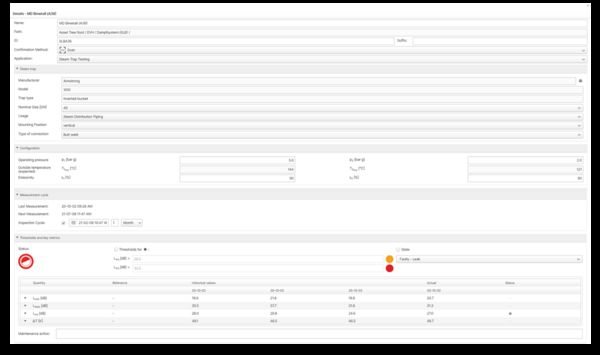

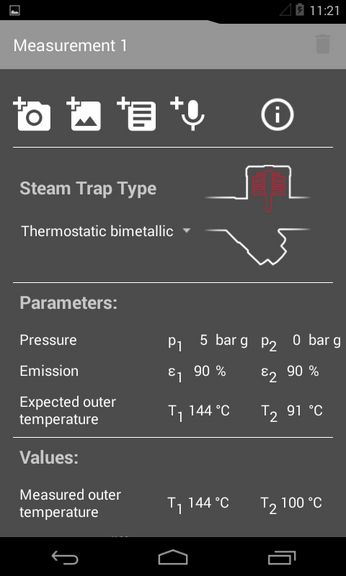

Specification of parameters
Precise specification of parameters such as mounting position, nominal diameter or application enable a precise evaluation.
Calculate the expected temperature based on the pressure.

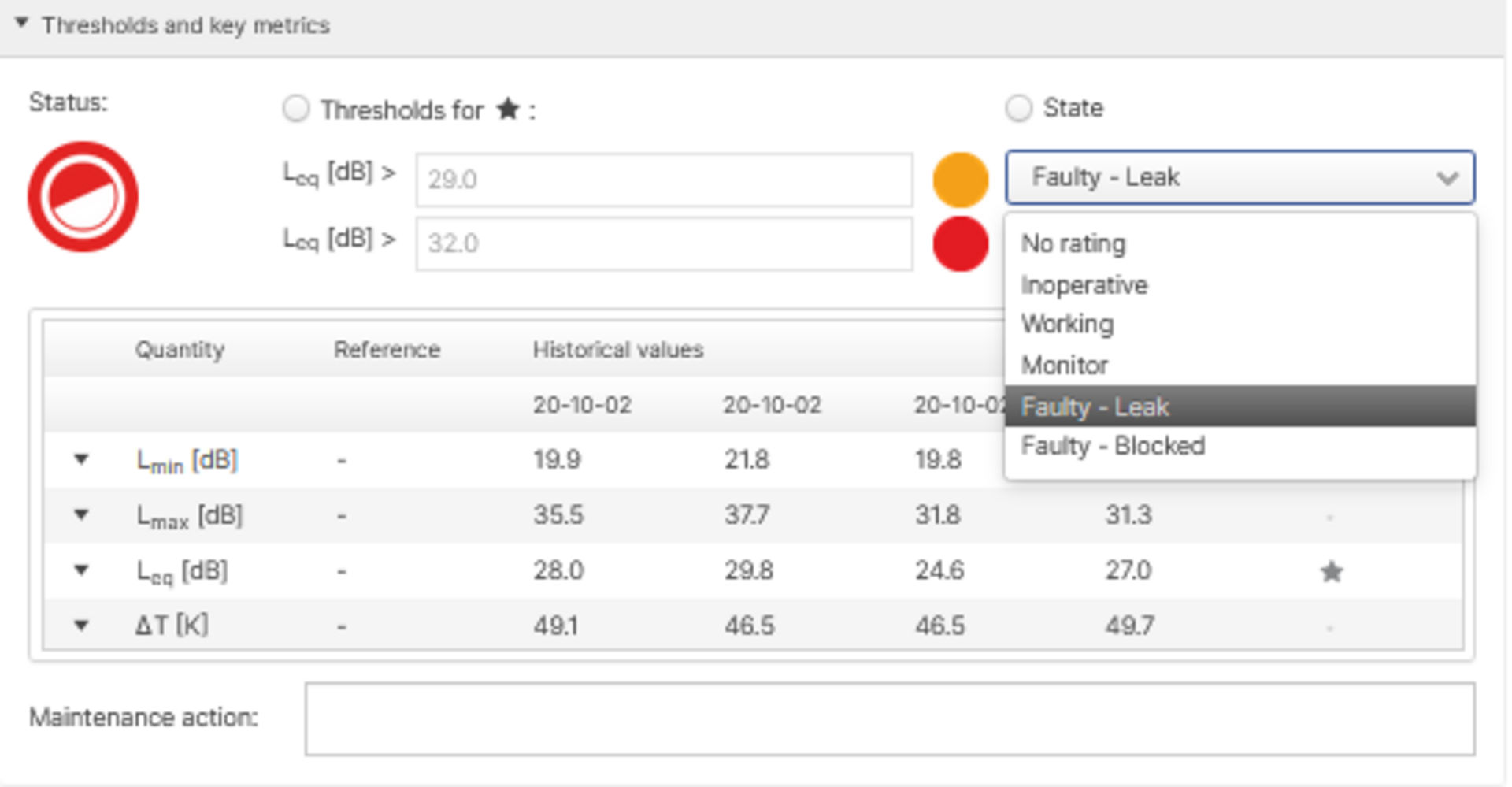

Condition assessment
Evaluate the condition of the steam trap using threshold values or perform a manual assessment.

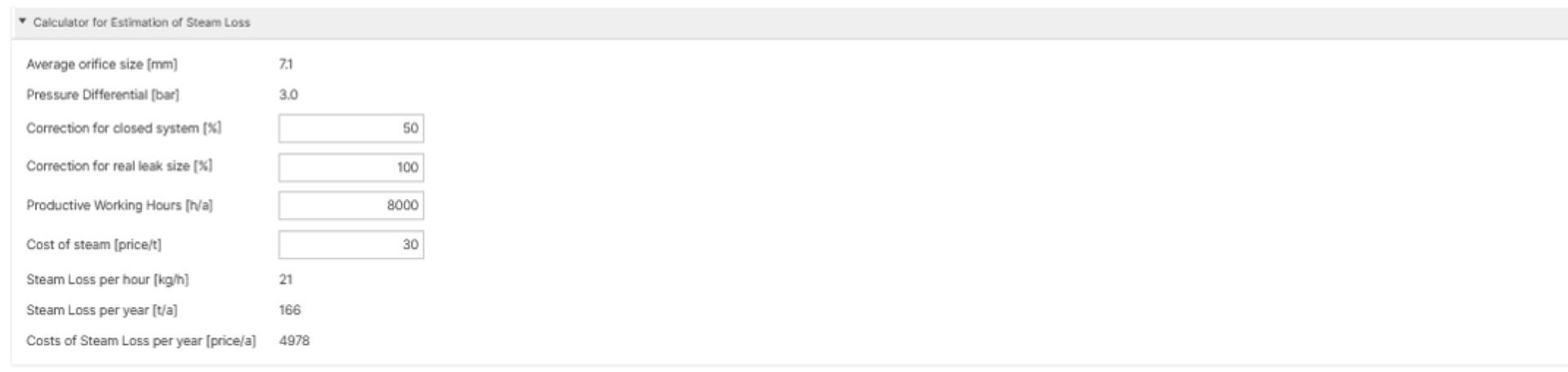

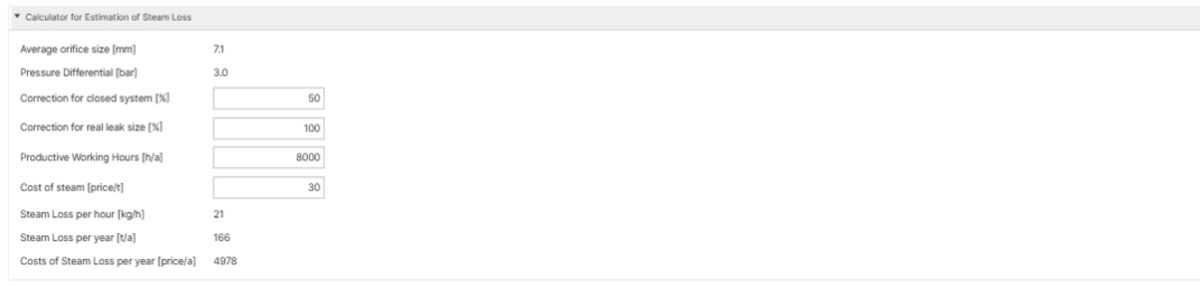

Tool for Cost Calculation
Automatic tool for calculating steam loss and energy costs

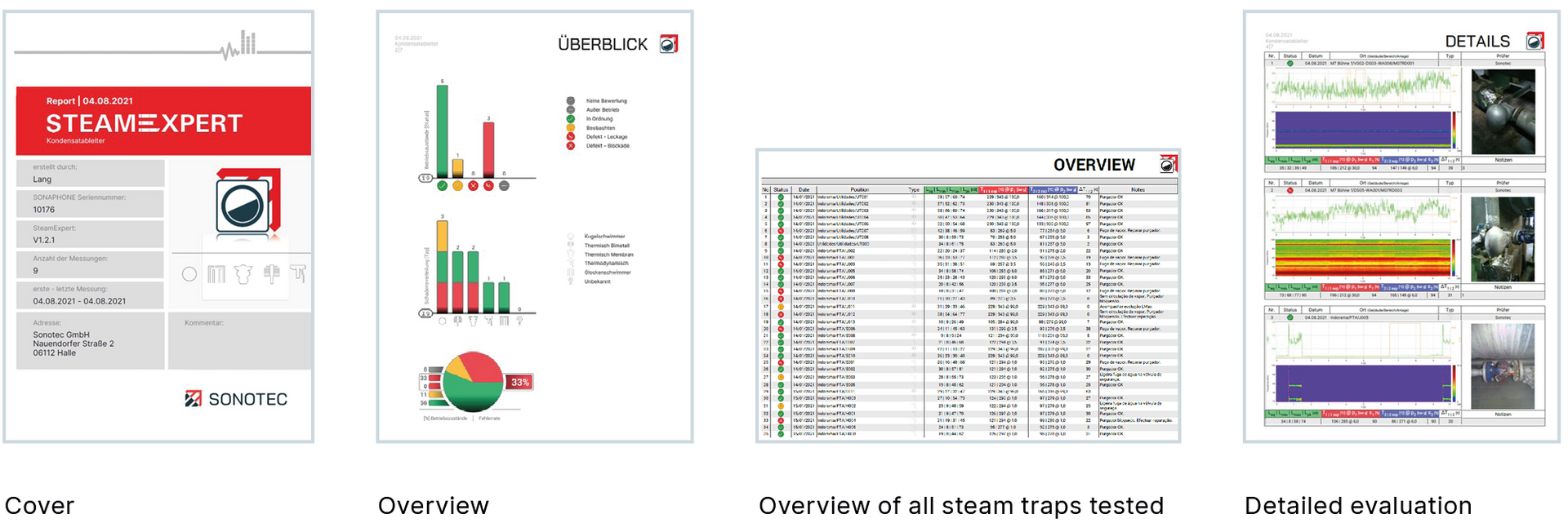

Comprehensive Report
Generate valuable reports in just a few clicks. With a preview funktion of the report.
SteamExpert App
SteamExpert App - Test and Evaluate Steam Traps Quickly and Efficiently
Advantages at a Glance
- Special app for the SONAPHONE in combination with the BS20 ultrasonic and temperature sensor
- Reduce steam losses and increase energy efficiency
- Avoid water hammer and improve operational safety
- Intuitive operation via touch display
- Optimized workflow
- In combination with the SONAPHONE DataSuite software platform: routing | trending | analyzing | reporting

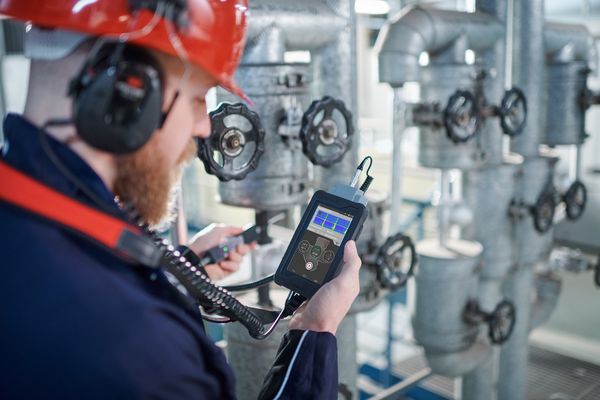

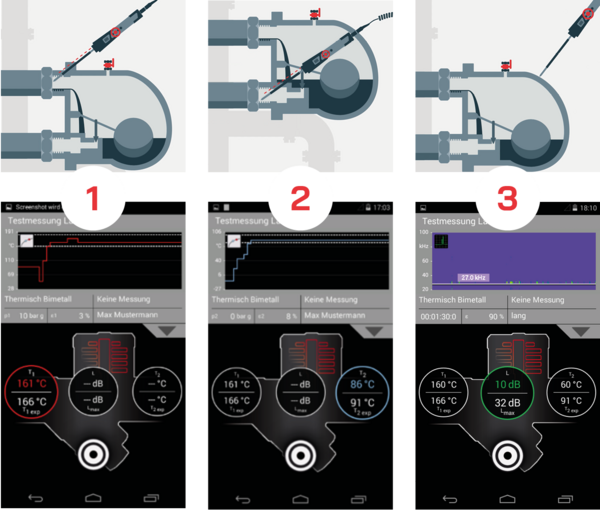

Intuitive step by step steam trap testing

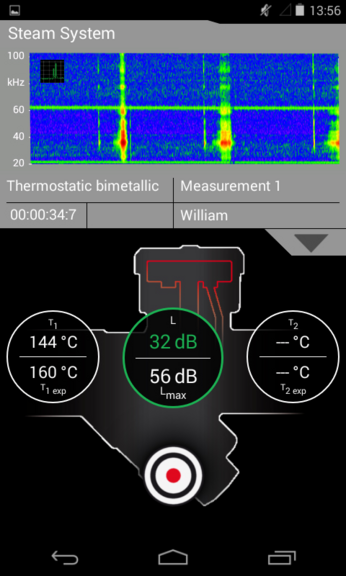

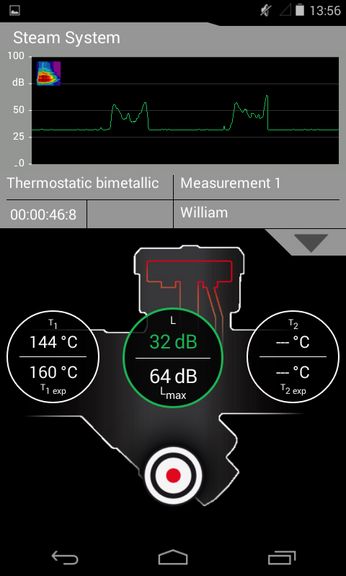

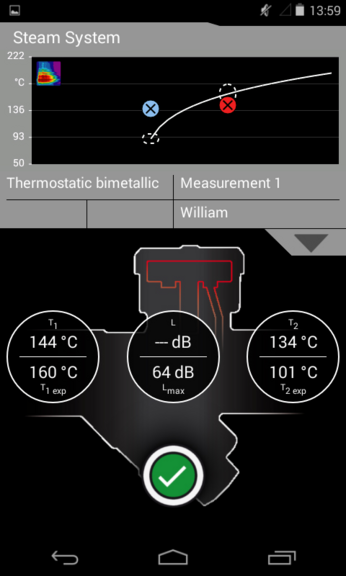

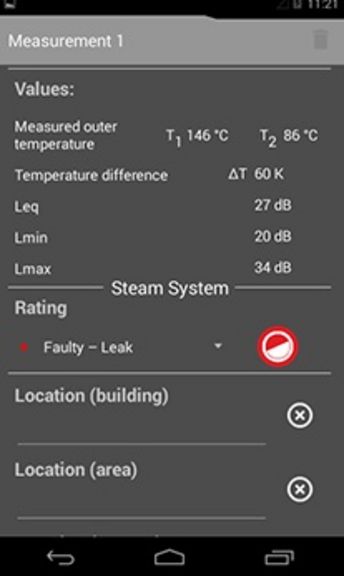

Measurement of:
- Inlet temperature
- Outlet temperature
- Ultrasound

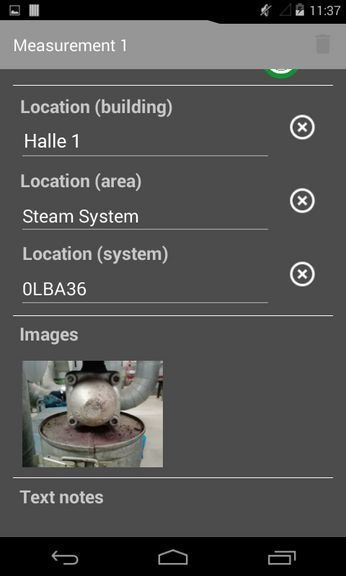

- Photo documentation and text comments directly at the measuring point on site
- Reporting directly on the device without PC software
Expertise
Video - SteamExpert App
