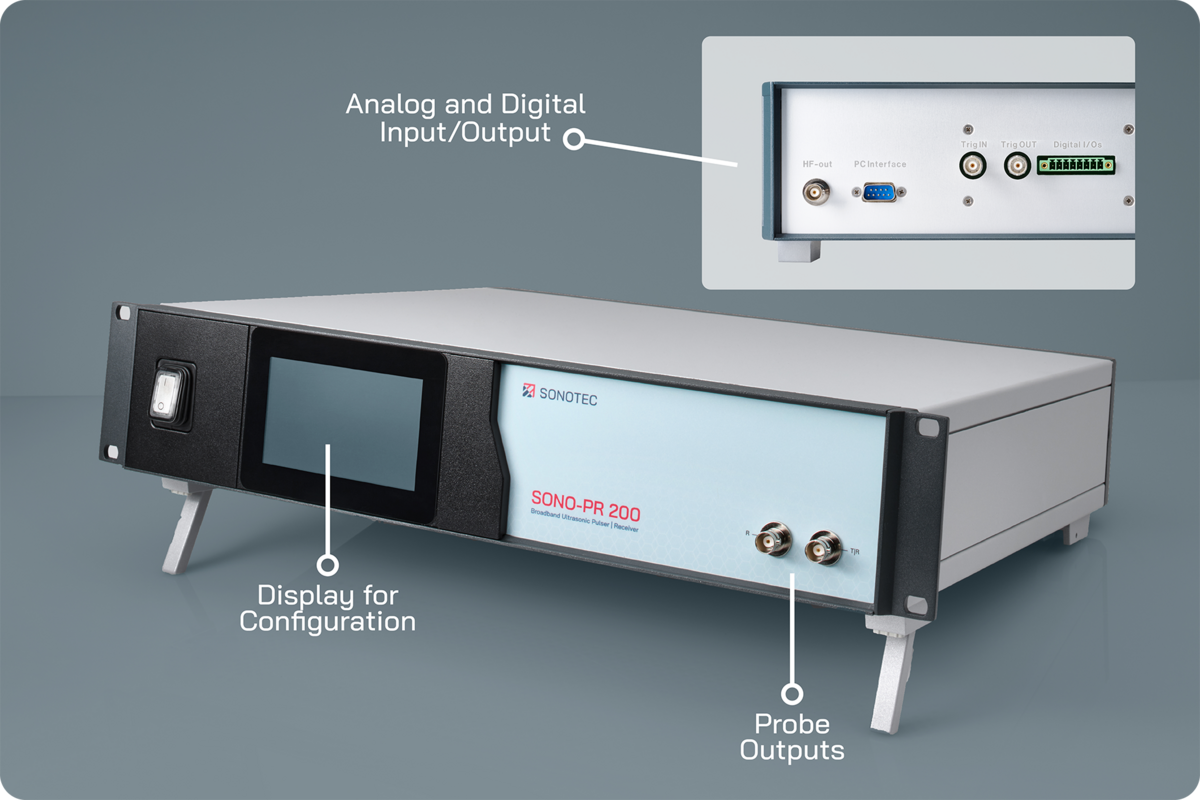

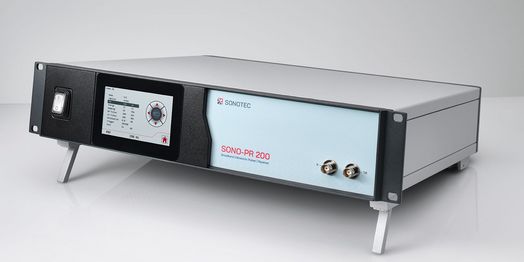

SONO-PR 200
Pulser-Receiver for Ultrasonic Testing
Thanks to its extremely wide frequency range up to 200 MHz, the SONO-PR 200 ultrasonic pulser-receiver covers various areas of application: from Ultrasonic Testing on the widest range of materials including wall thickness measurement to immersion technology and squirter applications through to acoustic microscopy. The possibility of remote control via serial interface, various trigger options as well as digital inputs and outputs make the SONO-PR 200 ideal for integration into automated testing facilities. The pulser receiver replaces reliably 5800PR, 5900PR, 5910PR.
Accessories
SONOA-AMP preamplifier optionally available!
Ultrasonic Probes
- SONOSCAN Angle Beam Probes
- SONOSCAN Straight Beam Probes
Applications
Numerous High-Pass and Low-Pass Filters
The individually configurable High- and Low-Pass Filters enable specific adjustment to the application in order to achieve a max. signal-to-noise ratio.
Powerful Spike Pulser
The minimal rise times of < 1 ns enable optimum excitation of high-frequency test heads. Furthermore, the variety of adjustable energy levels enables the widest range of designs of Ultrasonic Test Heads to be actuated.
Advantages at a Glance
- Extremely wide frequency range
- Large number of filters
- Extremely low noise
- Powerful needle transmitter
- Optional: rectangular transmitter operation
SONO-AMP Pre-Amplifier
By adding the SONO-AMP pre-amplifier, a fixed gain of 74 dB can be achieved. By combining a SONO-AMP, the system achieves an extremely low inherent noise of < 1 nV/√Hz. Thanks to a low noise level and high bandwidth, tests can therefore also be realised under challenging conditions.
