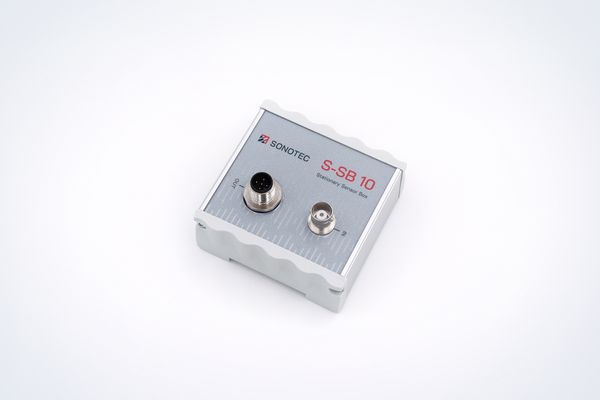

Stationary Sensor Box S-SB10
For Online Monitoring of Processes and Machines
The S-SB10 can be operated with both airborne and structure-borne sound probes. This allows very versatile conditions and processes to be monitored. For example, airborne ultrasound can be used to detect turbulent flows of gases at leakages as well as partial discharge processes at electrical systems. Both processes generate high-frequency ultrasonic signals .
With the stationary sensor box S-SB10 and its associated probes machine and plant processes can be monitored permanently, insofar as a detectable ultrasonic level is generated. A fixed installation at an inspection point enables trend monitoring for longer periods. Based on changes of the ultrasonic sound level the assessment of plant condition is possible. Different probe versions support airborne sound and structure-borne sound applications.
Advantages at a glance
- Connection of various probes for stationary monitoring of ultrasonic levels
- Online monitoring of levels and alarm triggers
- Trend observations over longer periods of time
- Broadband signal acquisition from 1 kHz to 100 kHz
- Automatic or manual input gain, bandpass filter, alarm thresholds, averaging
- RS485 interface and current output
- Compatible probes: T10, T20 and L50
The main function of the S-SB10 is to convert high-sampled ultrasonic signals in a usable way for downstream, low-sampled systems. Ultrasonic signals must be sampled in the range of several hundred kilohertz (kHz). Simple measurement cards or signal inputs of machine or process controls are unable to do this. If data in the ultrasonic range is to be processed, an appropriate conversion must be made. In the S-SB10, the high-frequency data is first amplified and filtered accordingly. Then, a level formation takes place, which leads to the reduction of the data stream. Finally, the level data or an alarm signal can be sent through the current output. With these signals it is now possible to feed simple measurement cards or PLC controls, which then take over the further data processing.
It is also possible to display the level of process displays or to trigger switching events directly with the help of the alarm triggers.
With the help of SONOTEC's own PC software and the USB-RS485 converter, it is simple parameterize the S-SB10. The input gain, corner frequencies of the bandpass filter (in 5 kHz steps), or averaging can be set, which is essential for commissioning and adaptation to the respective measurement task. Furthermore, alarm thresholds can be established and the type of level and its averaging can be selected.
The S-SB10 can be operated with both airborne and structure-borne sound probes. This allows versatile conditions and processes to be monitored. For example, airborne ultrasound can be used to detect turbulent flows of gases at leakages, as well as partial discharge processes at electrical installations, since both processes generate high-frequency ultrasonic signals.
|Device Type||Sensor Box for the Use of different Probes to monitor Ultrasonic Sound Levels stationary|
|Frequency Range||Up to 100 kHz (variable, upon Request)|
|Measuring Range||0 … 128 dBµV|
|Mounting||2 threaded Holes (see technical Drawing)|
|Operating Voltage||9 … 24 VDC|
|Electrical Connection (see also Pin Assignment)|| Input / Connection for Probes (others upon Request)|
Output: 5 pin M12 Connector
|Interfaces||Current Output: 0/4 ... 20 mA for Sound Level RS485 Interface (for Configuration)|
|Housing Material||Cast Aluminium Alloys, powder-coated|
|Operating Temperature||-10 °C ... +40 °C|
|Storage Temperature||-20 °C ... +60 °C|
|Degree of Protection||IP54|
|Dimensions (L x W x H)||84 x 79 x 44 mm (for Details see Drawing)|
|Weight||ca. 350 g (without Cable and Probes)|
|Versions|| S-SB10.02 Connector BNC: 200 01 0329|
S-SB10.01 Connector Mini-XLR: 200 01 0328
|Scope of Delivery|| Stationary SONAPHONE S-SB10.xx|
Technical Data Sheet
|Accessories (optional)||Connecting Cable with shielded Connector M12 and open End, PVC grey (others upon Request)|
|Order Number|| 2 m: 400 01 0061 |
5 m: 400 01 0060
10 m: 400 01 0170
