Ultrasonic Clamp-On Flow Meter
SONOFLOW® CO.55 for Non-Contact Contamination-Free Flow Measurement on Flexible Tubes
The ultrasonic clamp-on flow meter SONOFLOW CO.55 measures the flow rate of liquids in flexible plastic tubing fast and reliably. The non-invasive sensor made of aluminum or stainless steel does not have any contact to the medium and is particularly suited for applications with strict hygienic standards. The clamp-on mounting concept eliminates any risk of contamination or leakage.
For non-contact measurements on rigid plastic tubes and pipes, the SEMIFLOW CO.65 Ultrasonic Clamp-On Flow Sensor is the perfect solution.
Product Benefits
- Clamp-on ultrasonic flow meter for highly accurate liquid flow measurement - even at low flow rates and dynamic flow rate changes
- Non-contact measurement without any impact on the liquid or cells

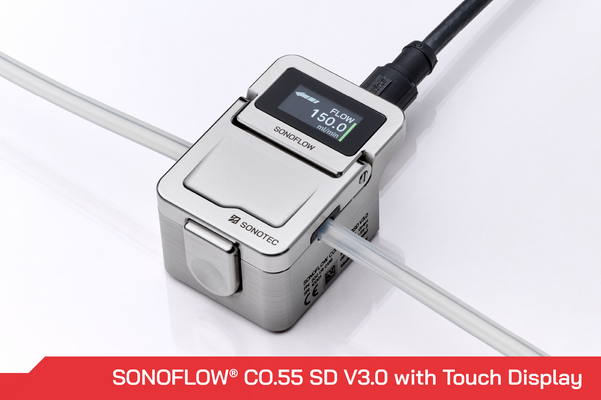

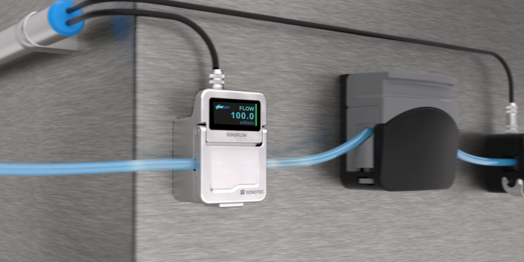

- GMP-ready stainless steel housing with color touch display
- Fast measurement of pulsating and bidirectional flow
- Convenient volume dosing feature
- Integrated electronics, no external electronic board required
- Compact housing for smallest footprint
SONOFLOW® CO.55 – Flow Meter for Highly Accurate Flow Measurement

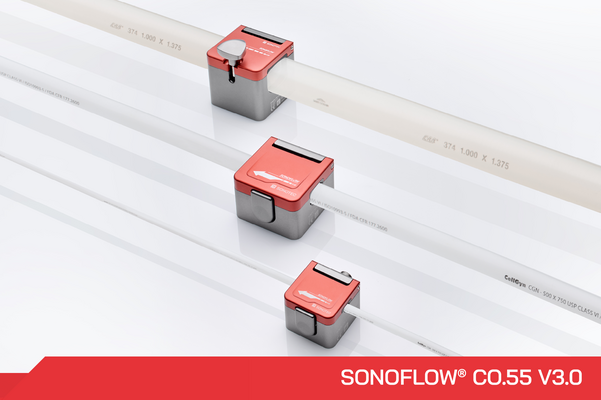

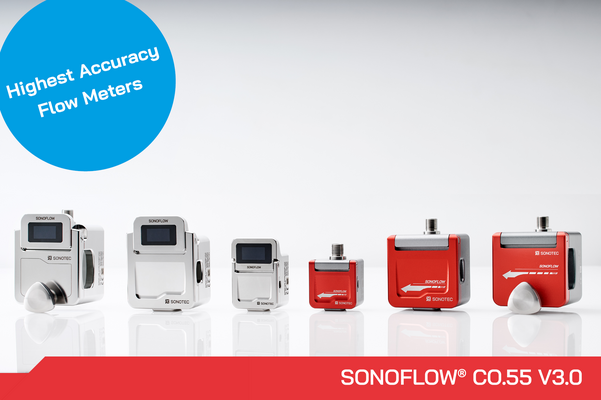

SONOFLOW® CO.55 V3.0
Highest Accuracy Non-Contact Flow Meter
for Flexible Bioprocessing Tubing
- Clamp-on flow meter for typical bioprocessing tubing

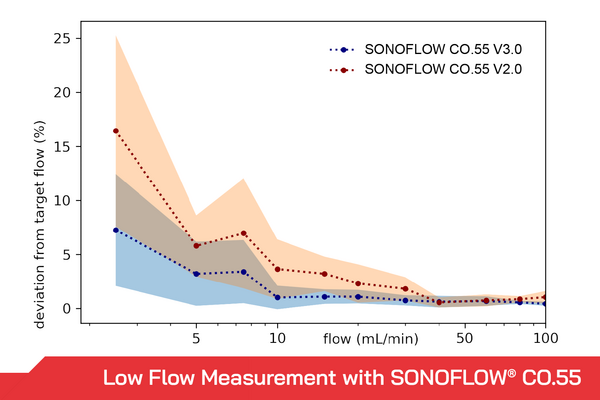

- Outstanding measurement accuracy even at low flow rates in lab and benchtop applications
- Excellent clamp-to-clamp repeatability with optimized measurement channel for most convenient tubing insertion and best acoustic coupling
Tubing & Sensor Sizes
SONOFLOW CO.55 V3.0 is made for flexible bioprocessing tubing and available in different sensor sizes to meet the requirements of various applications.
Currently available sensor sizes: 1/4′′, 3/8", 1/2", 5/8", 3/4′′, 1 3/8′′
SONOTEC will continuously expand the sensor series.

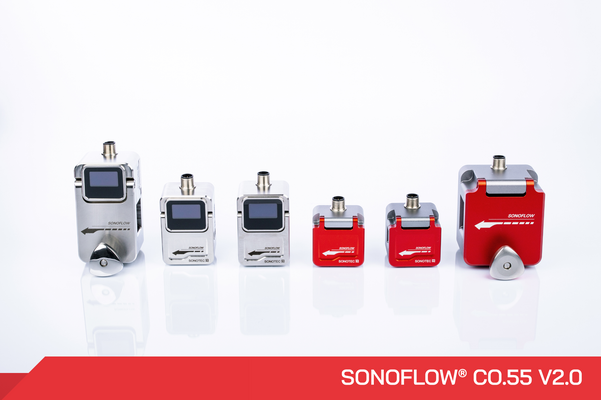

SONOFLOW® CO.55 V2.0
Highly Accurate Non-Contact Flow Meter
for Maximum Flexibility
- Highly accurate flow measurement on flexible plastic tubes
- Clamp-on flow meter in multiple standard sensor sizes designed for various tubing dimensions
- Sensor solutions for various tubing materials, such as PVC, silicone, PFA, PTFE, etc.
Tubing & Sensor Sizes
SONOFLOW CO.55 V2.0 is designed for maximum flexibility and suitable for different tubing material, such as PVC, Silicone, PTFE, PFA, FEP, TPE, Tygon, and PE.
The flow meter portfolio is available in different sizes for tubing with outer diameter between: 4 mm ... 35 mm.
Signal Processing
- Complete electronic signal processing unit integrated into the sensor
- No external electronics board required
- Advanced measurement algorithm implemented
- Configurable output interfaces for current, frequency, pulse, and PWM (only available for SONOFLOW CO.55 V3.0) outputs
System Integration, Configuration & Customization
- Easy to integrate into existing systems via RS-485 interface supporting Modbus
- Advanced software tool for user-friendly configuration and calibration
- Configurable parameter settings according to tube sizes and materials, fluids, flow ranges, and temperatures
- Convenient data retrieval of measuring values
SONOFLOW® CO.55 Tubing Size Chart
The "Tubing Size Chart" applies for the SONOFLOW CO.55 V2.0 and SONOFLOW CO.55 V3.0 product lines.
It helps to choose the right SONOFLOW CO.55 flow sensor size for the specific tubing size.
Accurate and Reliable Flow Measurement in Bioprocessing

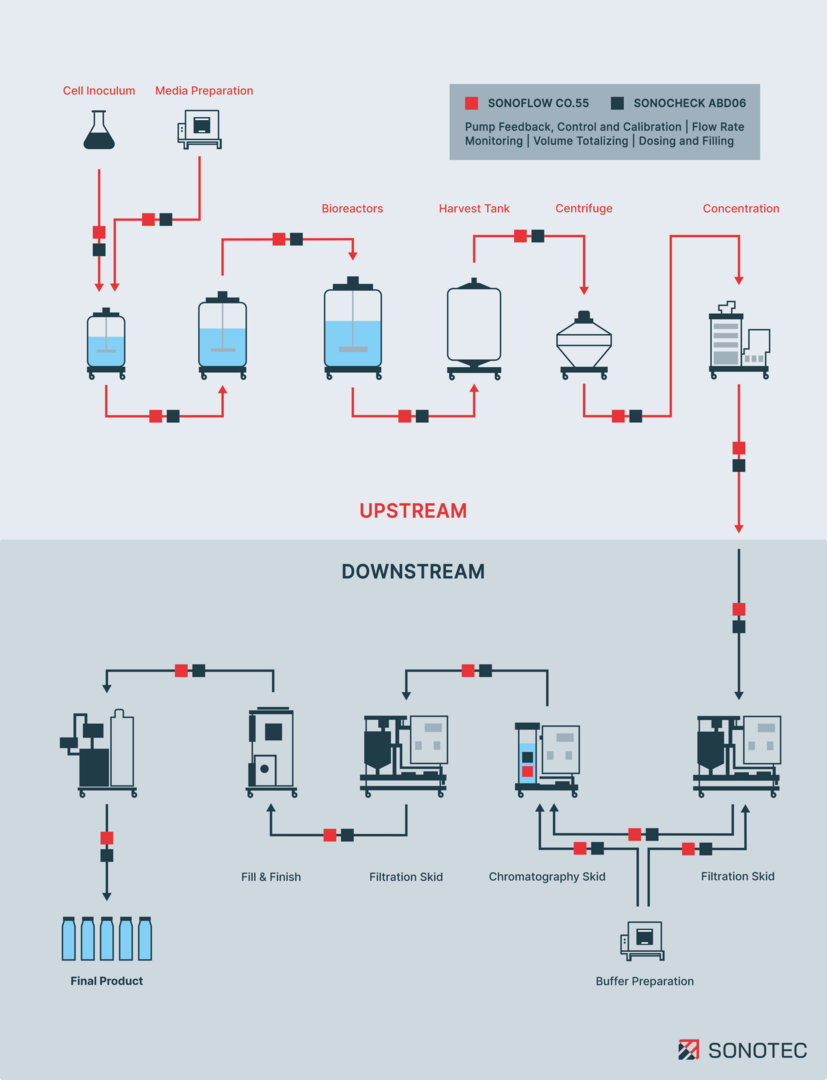

SONOFLOW® & SONOCHECK® Sensors in Bioprocesses
Bioprocessing Applications for Ultrasonic Clamp-On Flow Meter SONOFLOW® CO.55
Upstream Processes
| Media Prep | Replacing scales for volume measurement |
|---|---|
| Inoculation | Injecting cell lines into the reactor |
| Bioreactor | Feeding media / nutrients, control flow into and out of the bioreactor and ATF filters |
| Centrifugation | Determining flow / no flow |
Downstream Processes
| Buffer Prep | Replacing scales for volume measurement |
|---|---|
| Chromatography | Balancing acid / base delivery to the system |
| Filtration | Controlling process conditions during filtration |
| Tangential Flow Filtration | Measuring flow rates on feed, permeate, or retentate lines |
| Fill / Finish | Measuring volume of fluid dispensed into containers |
Video: Sensors in Bioprocessing
Implementing SONOFLOW CO.55 non-contact clamp-on flow meters and SONOCHECK ABD06 ultrasonic air bubble detectors at various steps in upstream and downstream bioprocessing.
SONOFLOW® CO.55 Ultrasonic Clamp-On Flow Meter: Application Fields
- Dosing systems
- Bioprocessing
- Pump protection
- Vaccine manufacturing
- Aliquotation
- Lab use
- Mixing equipment
- Chemical supply systems
