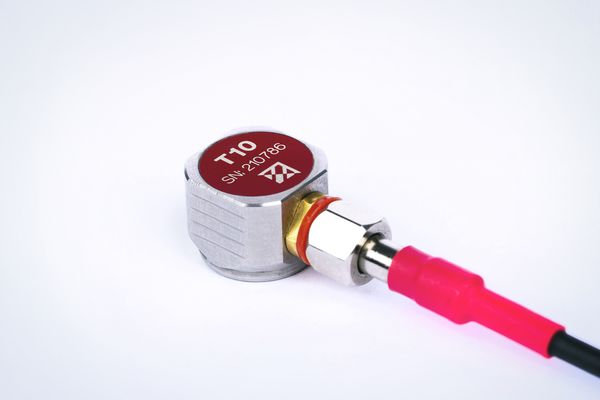

T10
Structure-Borne Sound Probe
The compact structure-borne sound probe T10 is perfectly suited for permanent condition monitoring in industrial plants.
- Compact structure-borne sound probe up to 100 kHz
- Monitoring of difficult to access inspection points through fixed installation
- For non-magnetic surfaces
- Trend monitoring for longer periods
The T10 structure-borne sound probe can be used to monitor the condition of machines, systems and processes, provided that they generate detectable structure-borne sound in the ultrasonic range. Changes in the sound signals indicate a change in the condition and/or process of the plant. The detection of these changes forms the basis for condition monitoring in preventive maintenance. The T10 structure-borne sound probe is used when the installation space is very limited or the test specimen must not be loaded with a large sensor mass. The T10 structure-borne sound probe is also suitable for use on non-magnetic surfaces.
The type of coupling depends on the type of test. The probe can be coupled by hand for short-term measurements or fixed with beeswax for recurring measurements with recording of measurement data. For permanent monitoring or fixed mounting within a safety cover/zone, the probe is glued on.
Technical Data*
| Order Number | 100 01 037 |
|---|---|

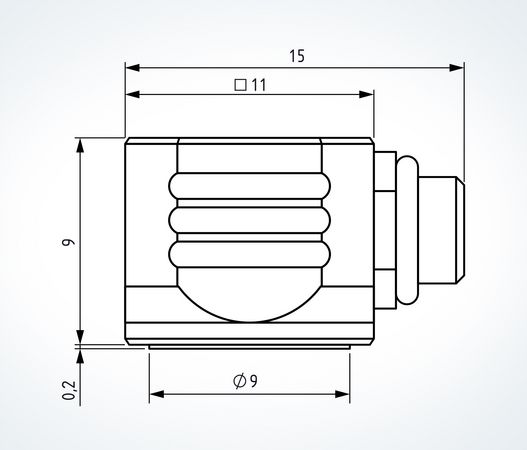

| Dimensions Housing (L x B x H) | 11 x 9 without connector (see Technical Drawing) |
| Weight | approx. 5 g |
| Electrical Connection | UNF 10-32 (Microdot) |
| Center Frequency | 25,0 +/- 3,0 kHz |
| Sensitivity | 6,0 mV / 1 m/s² @ center frequency |
| Materials | Housing: Stainless Steel; Probe Delay: PEEK |
| Working Temperature | +10 … +40 °C |
| Storage Temperature | -20 … +70 °C |
| Degree of Protection | IP54 |
| Designation | Color coded Frequency; Serial number |
| Scope of Delivery | Structure-borne sound probe T10; connecting cable UNF 10-32 – BNC 1.5 m; transportation box, test report / technical data sheet |
*The specified acoustic data apply from a frequency of 5 kHz.
