SONOCHECK® ABD Air Bubble Sensors & Detectors | Medical Devices

for medical applications with very high safety requirements

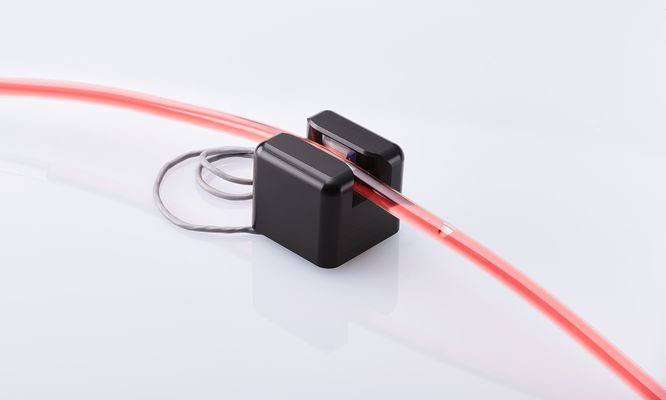

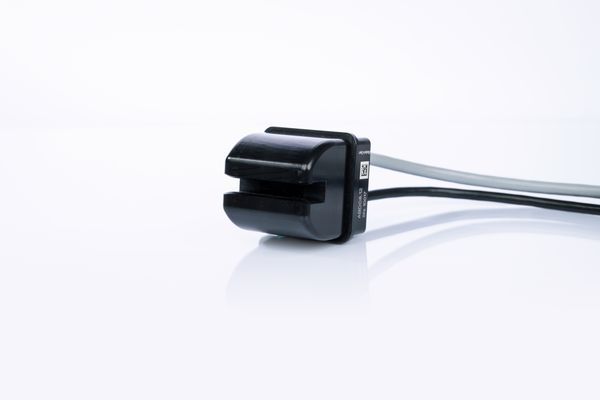

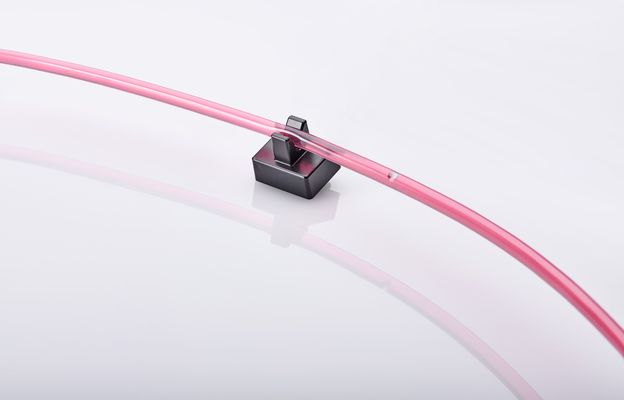

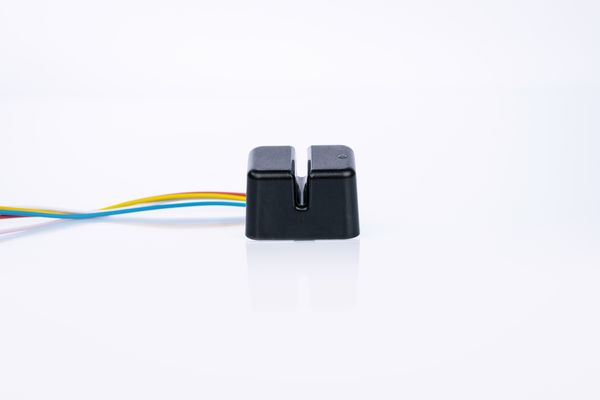

[Translate to English:] SONOCHECK ABD05 Clamp-On Luftblasensor zur Anwendung in Medizintechnikprodukten[Translate to English:] Miniaturisierter SONOCHECK ABD07 Clamp-On Luftblasensor zur Anwendung in Medizintechnikprodukten[Translate to English:] SONOCHECK ABD08 Clamp-On Luftblasensor zur Anwendung in Medizintechnikprodukten
[Translate to English:] SONOCHECK ABD05 Clamp-On Luftblasensor zur Anwendung in Medizintechnikprodukten[Translate to English:] Miniaturisierter SONOCHECK ABD07 Clamp-On Luftblasensor zur Anwendung in Medizintechnikprodukten[Translate to English:] SONOCHECK ABD08 Clamp-On Luftblasensor zur Anwendung in Medizintechnikprodukten

PRODUCT BENEFITS

  • Different safety concepts
  • Non-invasive measurement
  • Compact & modular design
  • Built-in electronics, no external electronic board required
  • Application-specific microbubble detection
  • No coupling medium required
  • No wear and tear
  • Optional software for parameterization and testing

Get a Quote

SONOCKECK® ABD05 | ABD07 | ABD08 - Air bubble sensors for use in medical technologies

The non-invasive SONOCHECK® ABD05 | ABD07 | ABD08 air bubble sensor series has been specifically designed for very high safety requirements in medical devices. The smart sensors are applied to detect air and gas bubbles in flexible plastic tubes filled with liquids such as blood, blood plasma, water or saline solution or are used for wet/dry alarm notifications.

In most medical applications, the sensors are intended to prevent air infusions which could lead to an endangerment of patients.

SONOCHECK® Air Bubble Sensors for Medical Technology - Easy Plug & Play Integration

  • Compact design for applications with high hygienic requirements
  • Tubes are simply inserted into the sensor with dry coupling
  • Automated adaption onto dynamically changing acoustic conditions

Smart Sensors with comprehensive security architecture

SONOCHECK® air bubble sensors of the ABD05 | ABD07 | ABD08 series incorporate intelligent ultrasonic transmission technology and innovative safety concepts in order to provide maximum sensor reliability. Depending on the sensor type, the various safety features include ...

  • Redundant sensors with two receivers and electronics,
  • Single channel design where the sensor performs cyclical self-tests and
  • Advanced fail-safe architecture where self-test routines are continuously performed without having any blind-times.

The non-invasive bubble sensors feature an asymmetric algorithm, which provides a dynamic adjustment to set the optimal operating point at any condition.

Application notes | Medical technologies

Innovative Air Bubble and Blood Leak Detectors for Hemodialysis

Hybrid SONOFLOW CO.56 Pro Flow-Bubble Sensors successfully designed into heart-lung machines

Technical Data

ABD05ABD07 ABD08


Safety Concepts

Cyclical Self-Test
Fail-Safe Architecture
Redundant Design
Integrated Electronics
Power Supply5 VDC5 VDC5 VDC
Software


Outputs


TTL Logic
Serial
PWM
RoHS/REACH Certificate
Miniaturization

Applications

  • Dialysis and transfusions
  • Heart-lung & ECMO machines
  • Blood separators
  • Pumps for medical technology (infusion, heart, feeding, contrast medium)
  • Diagnostic systems
  • Organ transport
