SONOFLOW IL.52 | Inline-Sensor

for precise measurement of low volume flow rates in pipes and tubes

Ultrasonic Inline-Sensor SONOFLOW IL.52Ultrasonic Flow Measurement with SONOFLOW IL.52Ultrasonic Sensor for Inline Flow Metering SONOFLOW IL.52
Ultrasonic Inline-Sensor SONOFLOW IL.52Ultrasonic Flow Measurement with SONOFLOW IL.52Ultrasonic Sensor for Inline Flow Metering SONOFLOW IL.52

PRODUCT BENEFITS

  • Quick Measurement Without Any Time Lag
  • Measurement of Intermittent Flows Feasible
  • Widely Independent of Colour and Electromagnetic Characteristics of The Liquid
  • No Wear and Tear
  • User Defined Position of The Sensor
  • Sterilizable

Get a Quote

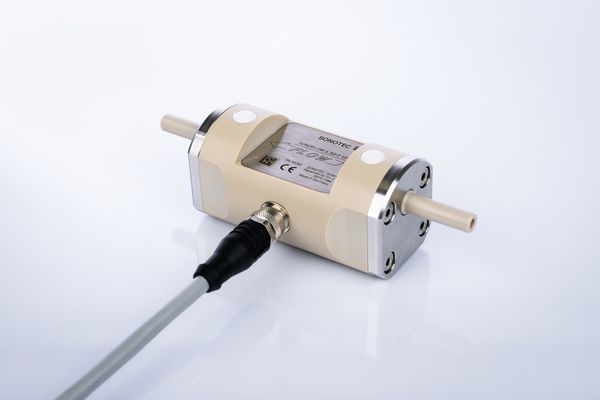

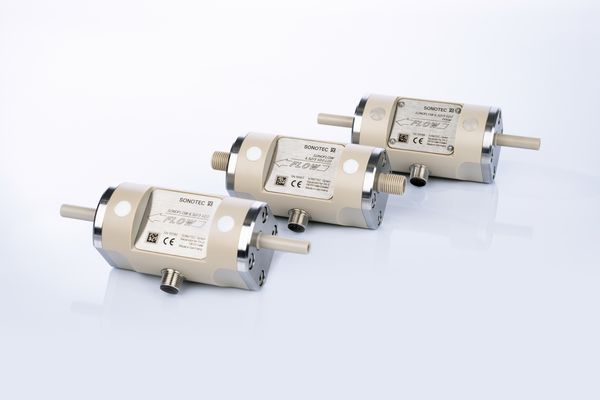

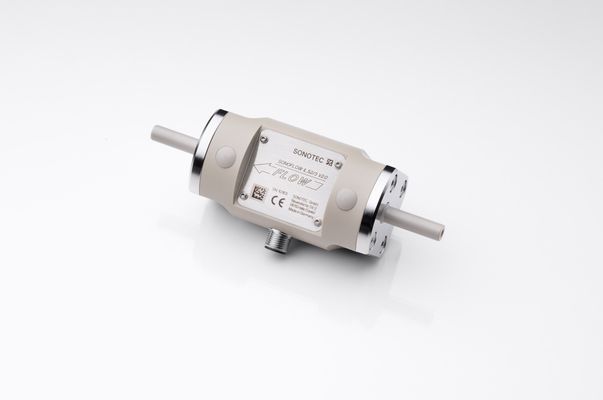

SONOFLOW IL.52 Inline Sensor – Highly accurate ultra-low flow sensor for flows as low as 0.4 ml/min

SONOFLOW IL.52 sensors are designed for precise measurement of ultra-low flow rates - performing fast and bidirectional. Due to its instantaneous measuring method with high repetition rates, the SONOFLOW IL.52 is suitable for quick dosing processes and for measuring pulsating flows.

  • Real-time flow measurement
  • Volume Dosing / Totalizer
  • Flow Switch for controlling external devices

Robust & maintenance-free sensor design

Since the sensor is integrated into devices or machines and comes into direct contact with the medium, product contacted components are exclusively made of high-grade PEEK material. Thus, the in-line sensor is ready for sterilization-in-place (SIP), clean-in-place (CIP), and autoclave applications. In addition, the robust sensor design impresses with its high temperature resistance without affecting measurements negatively. The sensor is wear- and maintenance-free and can be fitted in any position.

SONOFLOW IL.52 with excellent measuring performance

The SONOFLOW IL.52 monitors ultra-low flows reliably without being affected by the color and electromagnetic characteristics of the liquid itself:

  • Reliable measuring of flows as low as 0.4 ml/min,
  • Highly accurate (with an error of +/- 1%) and
  • Precise (with a repeatability of +/- 1%).

Easy data evaluation and process integration

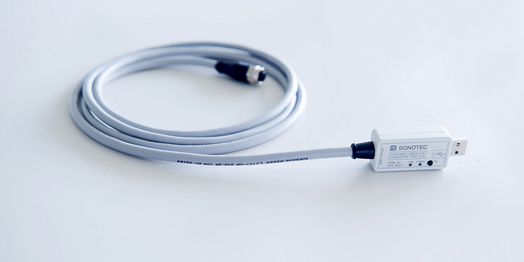

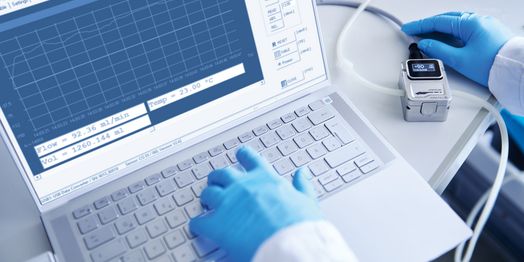

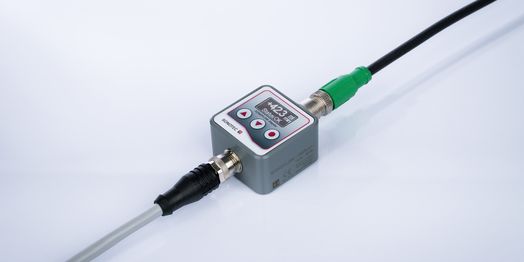

A serial interface allows an easy connection to a PLC or computer. Using the optional USB data converter and SONOFLOW Monitor Software tool allows an easy sensor parameterization & calibration, and readout of measuring values. It is also possible to connect the sensor to the SONOFLOW RD.10 Remote Display for direct real-time monitoring.

  • Serial interface with RS485 modbus protocol
  • Freely configurable 0/4-20 mA current output
  • Freely configurable 0-20 kHz frequency output
  • Freely configurable impulse output

Applications

  • Pharmaceutical Industry
  • Chemical Industry
  • Food Industry
  • Medical Technology
  • Dosing Systems
  • Analysis Technology
