Airborne Sound Sensor BS10 for Leak Detection and Electrical Inspection

Advantages at a Glance

Frequency range: 15 kHz to 100 kHz
Pinpoint leakages and partial discharges over distances up to 8 m
Including target laser and LED lamp
Applications (depending on the app):
- Detection and evaluation of leaks in compressed air, gas and vacuum systems
- Verification of leaks in windows, doors, vehicles or containers
- Detection of electrical partial discharges and insulation damage

Get a Quote

Ultrasonic Sensor BS10 Predictive Maintenance

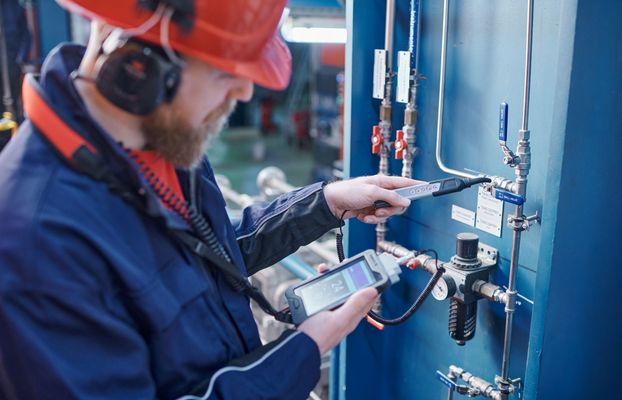

Ultrasonic leak detection with SONAPHONE and BS10 sensor

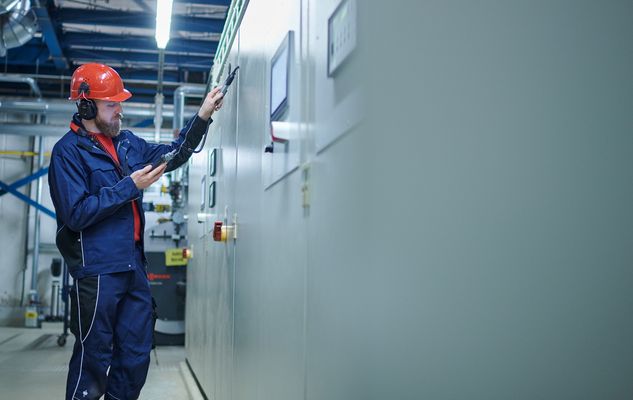

Electrical Inspection with SONAPHONE Pocket

General

The BS10 airborne sound sensor with accessories for different testing work has been specially designed for the following tasks:

Detection and evaluation of leaks in compressed air, gas and vacuum systems (depending on the app)
Tightness Testing of windows, doors, vehicles or containers (in combination with the SONAPHONE T ultrasonic transmitter)
Detection of electrical partial discharges and insulation damage

Frequency range 15 kHz to 100 kHz

Simultaneous analysis of the ultrasound frequency range between 15 kHz to 100 kHz

The target laser helps with the precise location of damaged areas:

If the sensor points towards the damaged area during the search, the precise location can be detected by means of acoustic signals, by pivoting the sensor and searching for a local maximum sound level. The target laser marks the approximate position of the damaged area.

LED light

The LED light serves as a torch, making it easier to search for damaged areas in poorly lit environments.

Accessories

Precise Location of Damage Areas in the Vicinity

Attachment for BS10 Airborne Sound Sensor

Range up to 3 Meters

Location of damaged areas at large distances up to 8 meters

Technical Data

Design	Sensor for the Detection of Airborne Ultrasonic Signals with exchangeable Attachments, Target Lasers and LED Lights
Operation	Via Buttons on the Sensor or on the Device; Buttons: Start/stop Testing, Laser, LED Lights, Volume
Frequency Range	15 kHz … 100 kHz
Measurement Resolution	1 dB
Power Supply and Communication	Cable Connection with the SONAPHONE (160 cm): LEMO Connection
Dimensions (W x H x D)	30 x 155 x 30 mm
Weight	80 g (without Accessories)
Materials	Sensor Housing: Plastic (Polycarbonate: ABS), gray; Attachments: Synthetic Rubber (EPDM), black

Ambient Conditions

Operating Temperature	-10 °C … +65 °C
Storage Temperature	-20 °C … +65 °C
Protection Type	IP40
Standards and Guidelines	EMC Directive 2014/30/EU WEEE Directive 2012/19/EU RoHS Directive 2011/65/EU ASTM E1002-2005

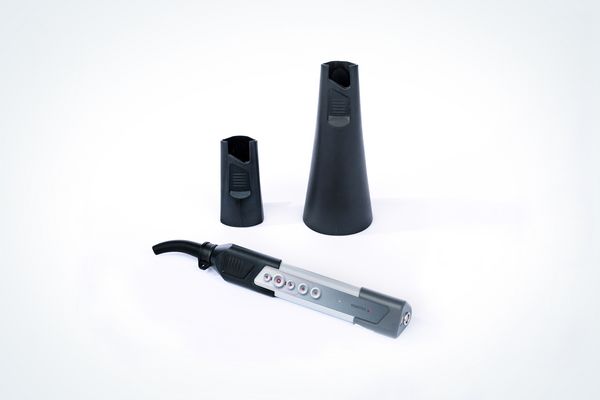

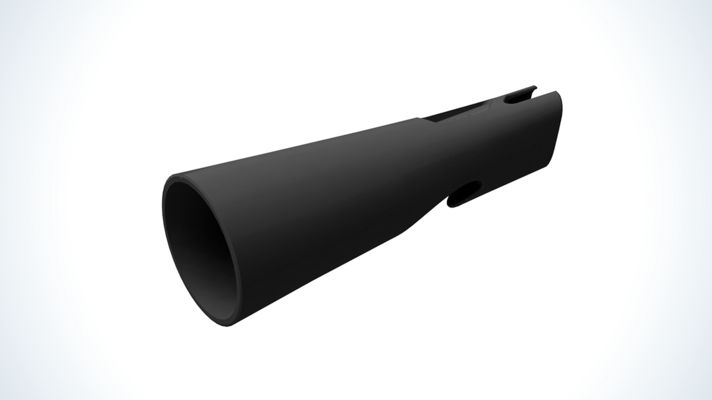

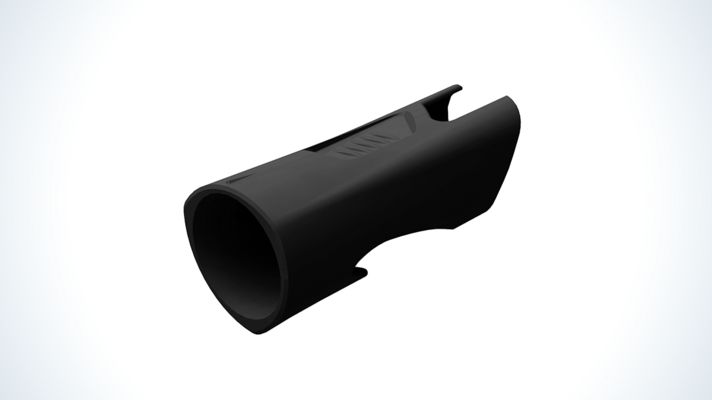

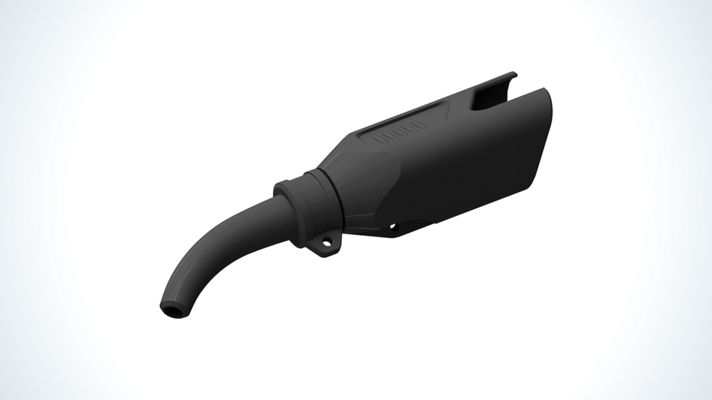

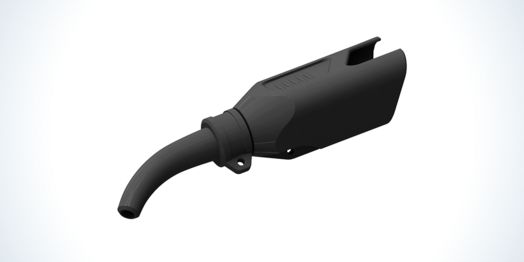

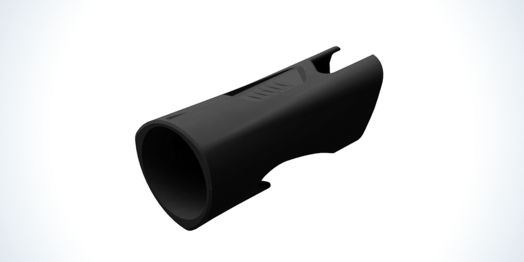

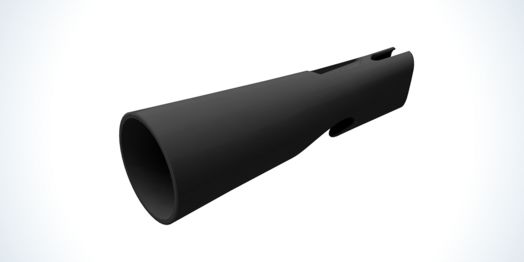

Accessories	Attachments to boost the acoustic Signal Strength: Small acoustic Horn BS10-2 for close Range Large acoustic Horn BS10-3 for larger Distances Precise Locator BS10-1 for the precise Location of Damage Areas
