New corrosion management software for SONOWALL 70 ultrasonic thickness gage

NDT Sonogrid Launch

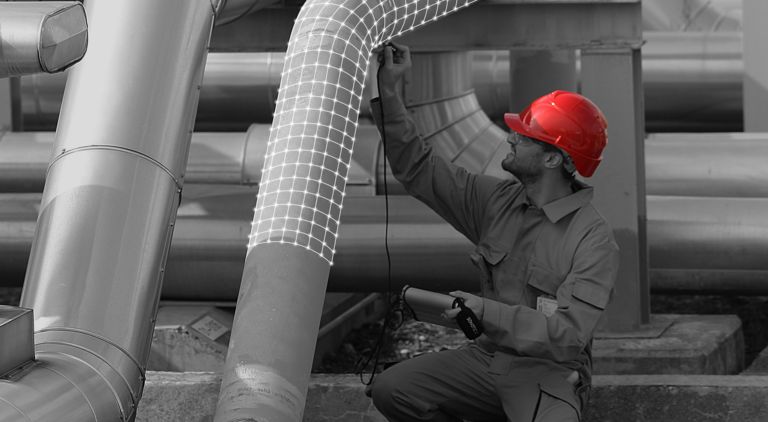

Corrosion and erosion defects are among the most common safety risks and reasons for production break downs in industrial environments such as refineries, pipeline networks, chemical plants, offshore platforms, storage tanks, etc. In order to maintain assets and to avoid hazards, ultrasonic thickness measurements are typically recorded frequently at pre-defined points creating a virtual grid on the surface of the test object.
To help collect, organize and report readings efficiently, the SONOWALL 70 ultrasonic thickness gage can be equipped with the SONOGRID corrosion management software. The operator is enabled to collect data reliably by the visualization of test paths through linear, 2D or 3D grids. Via direct data transfer to MS-Excel transparent measurement reports with A-scans, B-scans, text comments and setup lists can be generated.

The new software option offers the following advantages:

  • Efficient and reliable matrix data collection
  • Visualization of test path through 3D grid creation
  • Live comparison function and corrosion rate estimation
  • Reproducibility through grid copy function and device setup list
  • Easy attachment of A-/B-scans and unlimited text comments
  • Direct data export to MS-Excel and custom report generation

All technical specifications can be found at the company’s website.
