SONO-PR 10

Ultrasonic Pulser Receiver for Air-Coupled Ultrasonic Testing

Cost-effective air-coupled ultrasonic testing for non-destructive applications
Testing of lightweight components where conventional methods are not applicable
Allows non-contact testing without the use of coupling fluids
Frequency range of SONO-PR 10 up to 10 MHz

Get a Quote!

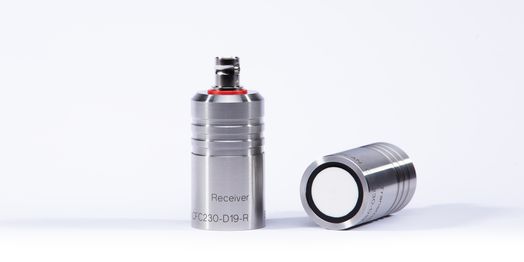

Ultrasonic probes for non-contact testing

SONOSCAN CFC / CF

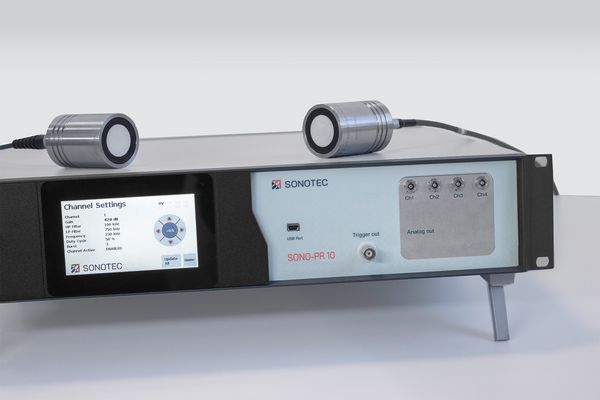

SONO-PR Pulser Receiver for air-coupled testing

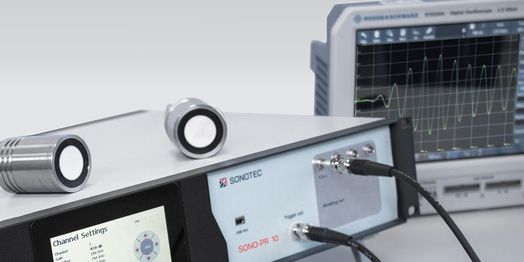

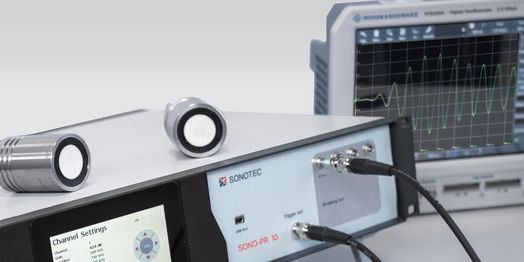

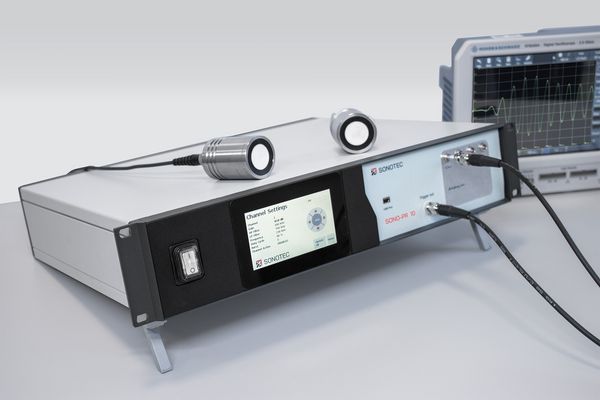

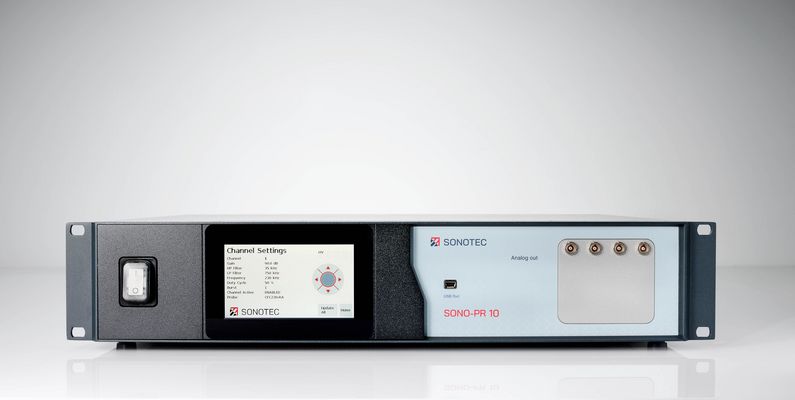

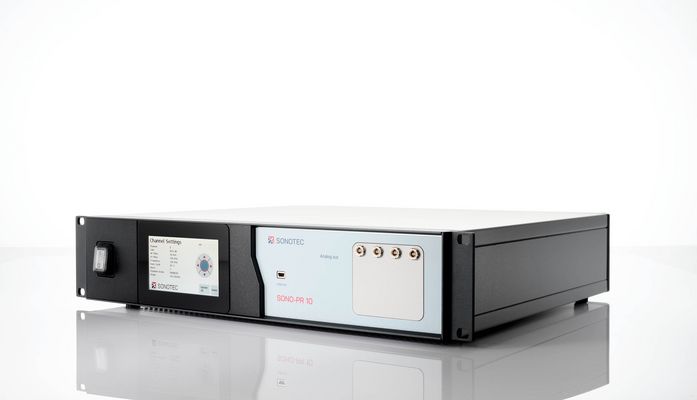

SONO-PR 10 pulser receiver with oscilloscope

General

Advantages

Affordable introduction to air-coupled ultrasound

Wide range of applications

High flexibility of the device

Simple system, not automated

Large spectrum in the air-coupled ultrasound range

No PC necessary

Applications

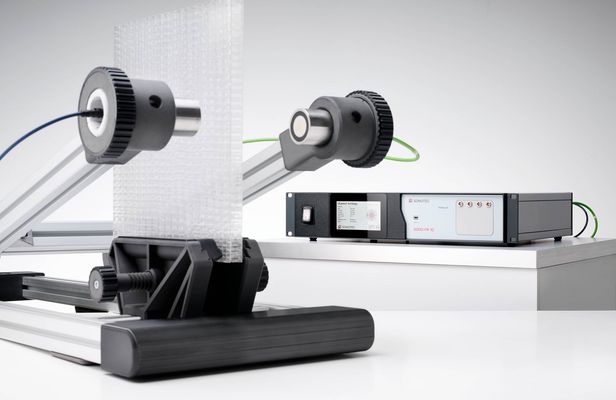

Non-contact ultrasonic testing for defect detection and material characterization on different materials

Suitable for materials that are difficult to test, such as foams, metals, plastics, and ceramic materials

Enables building material testing of bricks, composite panels, concrete, and wood

Honeycomb structures with different core and cover layers

Components

Maximum resolution and highest sensitivity due to state-of-the-art SONOTEC piezo-composite technology incl. element focusing

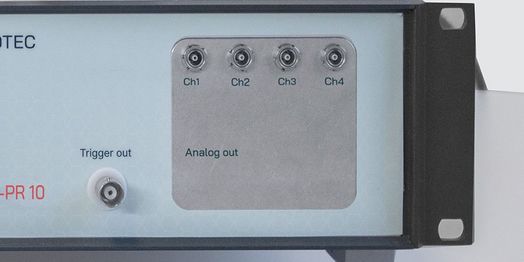

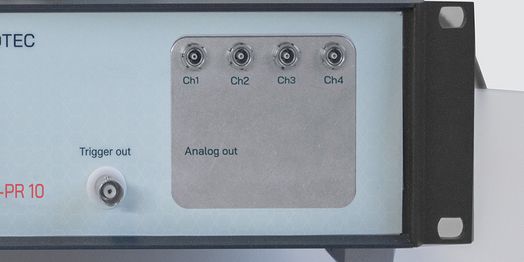

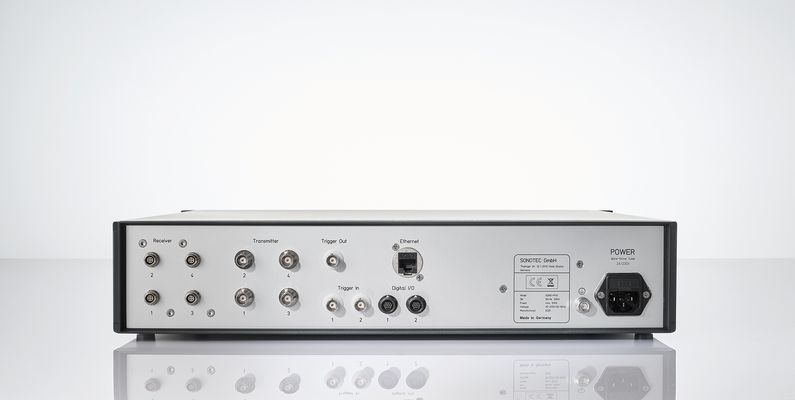

SONO-PR 10 detail view of channels and display

Up to 4 independent transmitter and receiver channels with configurable square-wave burst pulser and low-noise pre-amplifiers

BS20 Ultrasonic sensor for preventive maintenance and ultrasonic testing

Digital interface to extend the functionality

Operation and evaluation directly on the device via integrated touch panel – no additional computer required

Technical Data

General Data

19‘‘ Unit consisting of	Ultrasonic transmitter, ultrasonic receiver, analog/digital converter
Operating Temperature	5 °C to 40 °C
Network Interface	1 Gbit LAN
Protection Class	IP20

A/D Converter

Resolution	14 Bit
Scan Rate	Up to 50 MS/s

Pulser

Number of Channels	1 to 4
Pulse Height	10 V to 500 V
Frequency Range	40 kHz to 10 MHz
Type	Square wave burst (configurable width for each pulse)

Receiver

Number of Channels	1 to 4
Frequency Range	35kHz to 15 MHz
Gain with integrated CFC preamplifier	20 dB to 140 dB, 0.5 dB increment
Gain with standard external preamplifier	0 dB to 120 dB, 0.5 dB increment
Noise	1 nV / √Hz

Interfaces

Inputs	Multi-channel: digital and analog
Outputs	Multi-channel: digital

Downloads

Flyer SONO PR 10

3 MB

Name	Purpose	Duration	Type	Provider
CookieConsent	Saves your consent to the use of cookies.	1 year	HTML	Website
fe_typo_user, _unit, _unitsub	Maps your browser to a session on the server.	1 session	HTTP	Website
PHPSESSID	This cookie is used to identify the user while using onlyfy one. The cookie is absolutely necessary for correct functionality. The cookie loses its validity when the browser is closed.	session	HTTP	Xing
REMEMBERME	This cookie is used to restore an expired session. The cookie is absolutely necessary for correct functionality.	session	HTTP	Xing
visitor_id	This cookie is used to detect and rectify errors and for product organisation and planning. Only by using an analysis tool can New Work SE understand how onlyfy or individual areas are used. This is not about analysing user behaviour on an individual basis, but of all onlyfy users. (Subcontractor: Adobe Systems Software Ireland Ltd)	1 year	HTTP	Xing
prevPage	missing translation: trackingobject.prevPage.desc	30 minutes	HTTP	Xing
teams.microsoft.com, microsoftonline.com, teams.skype.com	Enables registration and use of Microsoft Teams.	Session or permanent	Functional	Microsoft
SetCookie SameSite	Protects against CSRF attacks and ensures that cookies can be used securely.	session	Security cookie	Microsoft

Name	Purpose	Duration	Type	Provider
DSID	Google: Security, Functionality, Advertising for AdSense, Campaign Manager, Google Ad Manager, Google Analytics, Display + Video 360, Search Ads 360	2 weeks	HTML	Google
test_cookie	Google: Functionality for AdSense, Campaign Manager, Google Ad Manager, Google Analytics, Display + Video 360, Search Ads 360	15 minutes	HTML	Google
IDE	Google: Advertising for Campaign Manager, Display + Video 360, Google Ad Manager, Google Analytics, Search Ads 360	24 months	HTML	Google
FPLC	Google: Analytics for Google Analytics	20 hours	HTML	Google
FPID	Google: Analytics for Google Analytics	2 years	HTML	Google
GA_OPT_OUT	Google: Functionality for Google Analytics	7 years	HTML	Google
__utma	Google: Analytics for Google Analytics	2 years	HTML	Google
__utmb	Google: Analytics for Google Analytics	30 minutes	HTML	Google
__utmc	Google: Analytics for Google Analytics	session	HTML	Google
__utmt	Google: Analytics for Google Analytics	10 minutes	HTML	Google
__utmz	Google: Analytics for Google Analytics	6 months	HTML	Google
__utmv	Google: Analytics for Google Analytics	2 years	HTML	Google
_ga	Used to distinguish users.	2 years	HTML	Google
_gat	Used to throttle request rate.	1 day	HTML	Google
_gat_--custom-name--	Google: Analytics for Google Analytics	1 minute	HTML	Google
_gid	Used to distinguish users.	1 day	HTML	Google
_ga_--container-id--	Persists session state.	2 years	HTML	Google
_dc_gtm_--property-id--	Used by DoubleClick (Google Tag Manager) to help identify the visitors by either age, gender or interests.	1 minute	HTML	Google
_gaexp	Google: Analytics for Google Analytics, Optimize	93 days	HTML	Google
_gaexp_rc	Google: Analytics for Google Analytics, Optimize	10 seconds	HTML	Google
_opt_awcid	Google: Analytics for Google Analytics, Optimize	24 hours	HTML	Google
_opt_awmid	Google: Analytics for Google Analytics, Optimize	24 hours	HTML	Google
_opt_awgid	Google: Analytics for Google Analytics, Optimize	24 hours	HTML	Google
_opt_awkid	Google: Analytics for Google Analytics, Optimize	24 hours	HTML	Google
_opt_utmc	Google: Analytics for Google Analytics, Optimize	24 hours	HTML	Google
_gac_--property-id--	Contains campaign related information for the user. If you have linked your Google Analytics and Google Ads accounts, Google Ads website conversion tags will read this cookie unless you opt-out.	3 months	HTML	Google
AMP_TOKEN	Contains a token that can be used to retrieve a Client ID from AMP Client ID service. Other possible values indicate opt-out, request in progress or an error retrieving a Client ID from AMP Client ID service.	1 year	HTML	Google
_gcl_au	Used by Google AdSense to experiment with advertisement efficiency.	3 months	HTML	Google
_clck, _clsk, CLID	Session recording and user behavior for Microsoft Clarity.	Session or permanent	Analytically	Microsoft
